33V560SDS, V-Belt Pulley

33V560SDS, 3V5.6-3-SDS, 20180619, 3V563, 3-3V5.6, 3/3V560SDS

Product Details for 33V560SDS

Comparable to: 33V560SDS, QD3/3V5.60, 3V5.6-3-SDS, 20180619, 3V563, 3-3V5.6, 3/3V560S

Click to Enlarge

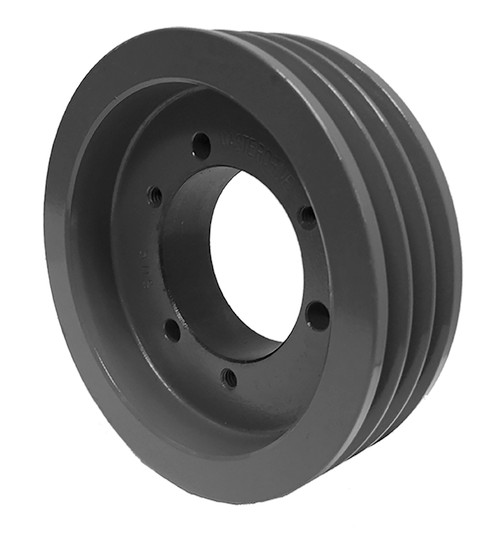

33V560SDS, V-Belt Pulley, Cast Iron

Learn more about 33V560SDS V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 33V560SDS
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 5.550
Outside Diameter (in) 5.600
Face Width (in) 1.500
Min. Bore (in) 0.500
Unit System Inch
Bushing SDS
Max. Bore (in) 2.000
For Belt Type 3V
Weight (lb) 6.00
Part Number Cross Reference 33V560SDS, QD3/3V5.60, 3V5.6-3-SDS, 20180619, 3V563, 3-3V5.6, 3/3V560S
