34-14MX125-6FS16, Timing Pulley

34-14MX125-6FS16

Click to Enlarge

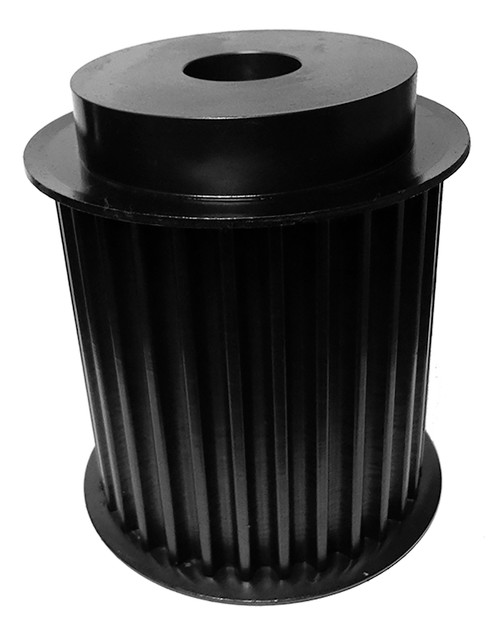

34-14MX125-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 34-14MX125-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	34-14MX125-6FS16
Teeth	34
Tooth Style	14MX
For Belt Width (mm)	125.00
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.500
Bore Description	1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	5.965
Outside Diameter (in)	5.855
Flange Diameter (in)	6.465
Face Width (in)	5.609
Overall Length (in)	6.688
Hub Diameter (in)	4.890
Min. Bore (in)	1.5
Pulley Belt Width (in)	5.290
Unit System	Inch
P.D. (mm)	152.00
O.D. (mm)	148.70
MOQ	1
Weight (lb)	38.16
Part Number Cross Reference	PB14MX-34S-125, PB14MCS-34-125, 34G-14M-125-MPB, 20839806, PB14MX-34S-125 MPB, 14MPC34S125MPB, 34-14MX125-6FS16, 482172, 34-14MX125-6FS16
