34-3M09-6FA3, Timing Pulley

34-3M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

34-3M09-6FA3

Click to Enlarge

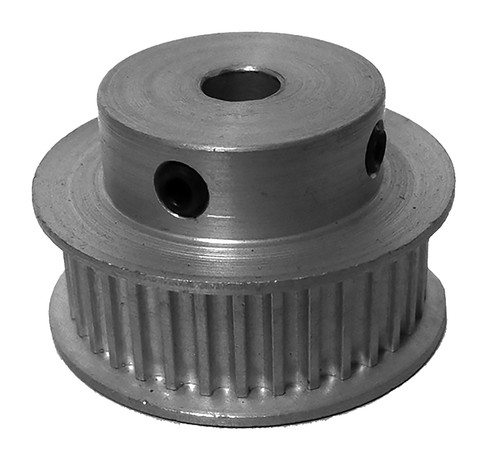

34-3M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34-3M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-3M09-6FA3
Teeth 34
Tooth Style HTD3mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.278
Outside Diameter (in) 1.248
Flange Diameter (in) 1.398
Face Width (in) 0.527
Overall Length (in) 0.833
Hub Diameter (in) 0.921
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.400
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 31.70
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference A 6A23-034DF0908, A6A23-034DF0908, P34-3M-09AL, 34M3-L09M-6F, PT034F08L09T, 34-3M-09 X 1/4, 34-3M09-6FA3, 34-3M09-6FA3
Set Screw Quantity 2

Comparable to: A 6A23-034DF0908, A6A23-034DF0908, P34-3M-09AL, 34M3-L09M-6F, PT034F08L09T, 34-3M-09 X 1/4, 34-3M09-6FA3, 34-3M09-6FA3
