34-5M15-6FA3, Timing Pulley

34-5M15-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 34-5M15-6FA3

Comparable to: A 6A25-034DF1508, A6A25-034DF1508, P34-5M-15AL, 78821033, PT034G08L15T, P34-5M-15

Click to Enlarge

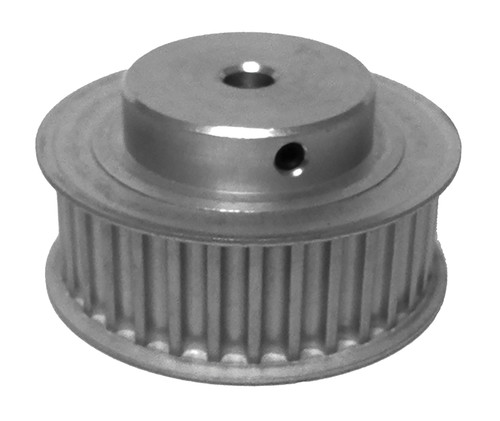

34-5M15-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34-5M15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-5M15-6FA3
Teeth 34
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 2.130
Outside Diameter (in) 2.085
Flange Diameter (in) 2.250
Face Width (in) 0.780
Overall Length (in) 1.087
Hub Diameter (in) 1.375
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.650
Unit System Inch
MOQ 1
Weight (lb) 0.33
Part Number Cross Reference A 6A25-034DF1508, A6A25-034DF1508, P34-5M-15AL, 78821033, PT034G08L15T, P34-5M-15
Set Screw Quantity 2
