34-5MX25-6FS6, Timing Pulley

34-5MX25-6FS6 - Steel Powerhouse® MX Pulleys

Product Details for 34-5MX25-6FS6

Comparable to: 34-5MX25-6FS6

Click to Enlarge

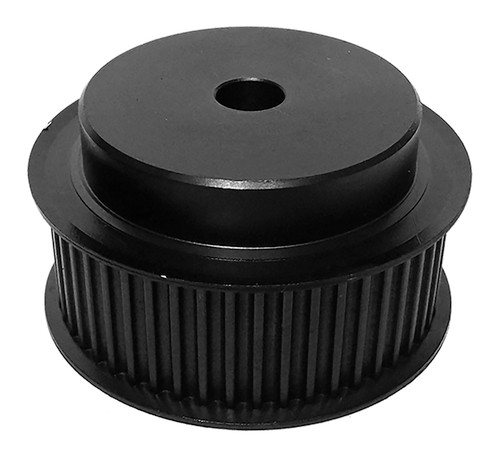

34-5MX25-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 34-5MX25-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-5MX25-6FS6
Teeth 34
Tooth Style 5MX
For Belt Width (mm) 25
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.130
Outside Diameter (in) 2.085
Flange Diameter (in) 2.375
Face Width (in) 1.280
Overall Length (in) 1.730
Hub Diameter (in) 1.690
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.100
Unit System Inch
MOQ 1
Weight (lb) 1.36
Part Number Cross Reference 34-5MX25-6FS6
