34XXHR300, Timing Pulley

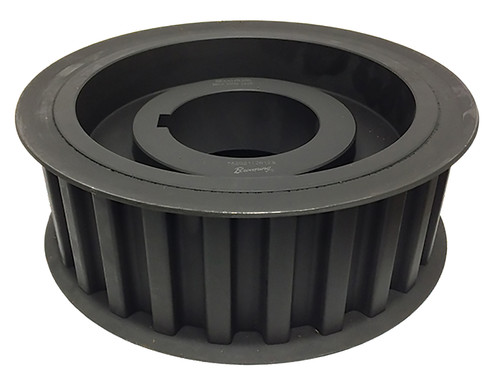

34XXHR300 - Cast Iron Imperial Pitch Pulleys

34XXHR300

34XXHR300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

34XXHR300, Timing Pulley, Cast Iron

Learn more about 34XXHR300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34XXHR300
Teeth 34
Tooth Style XXH
For Belt Width (in) 3.0000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R1 Bushing
Pitch Diameter (in) 13.528
Outside Diameter (in) 13.408
Flange Diameter (in) 14.250
Face Width (in) 3.688
Overall Length (in) 3.969
Min. Bore (in) 1.125
Unit System Inch
Bushing R1
P.D. (mm) 344.00
O.D. (mm) 340.60
MOQ 1
Weight (lb) 49.50
Part Number Cross Reference 34XXHR300, 34XXHR300, 34XXHR300
