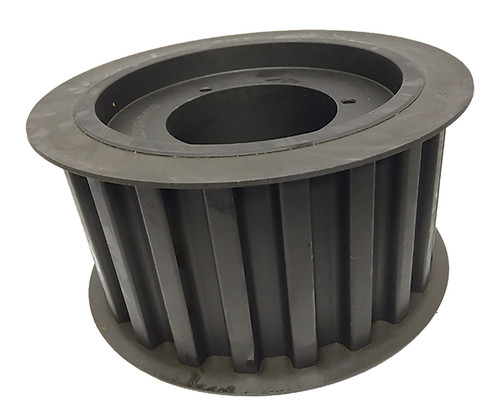

34XXHS400, Timing Pulley

34XXHS400 - Cast Iron Imperial Pitch Pulleys

34XXHS400

34XXHS400 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

34XXHS400, Timing Pulley, Cast Iron

Learn more about 34XXHS400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34XXHS400
Teeth 34
Tooth Style XXH
For Belt Width (in) 4.0000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for S1 Bushing
Pitch Diameter (in) 13.528
Outside Diameter (in) 13.408
Flange Diameter (in) 14.250
Face Width (in) 4.750
Overall Length (in) 5.125
Min. Bore (in) 1.5625
Unit System Inch
Bushing S1
P.D. (mm) 344.00
O.D. (mm) 340.60
MOQ 1
Weight (lb) 80.00
Part Number Cross Reference 34XXHS400, 34XXHS400, 34XXHS400
