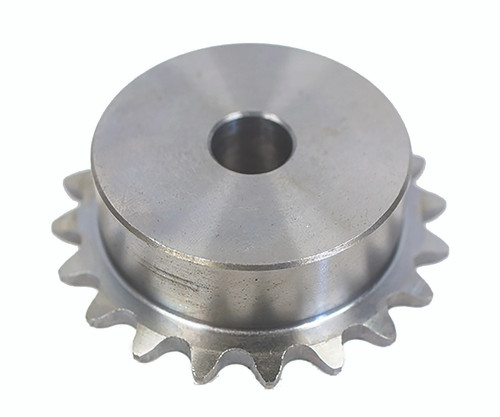

35B17, Roller Chain Sprocket

35B17

35B17, Roller Chain Sprocket, Steel

Learn more about 35B17 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	35B17
Teeth	17
Tooth Style	35
Type	B
Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.041
Outside Diameter (in)	2.231
Face Width (in)	0.168
Overall Length (in)	0.750
Hub Diameter (in)	1.594
Min. Bore (in)	0.5
Unit System	Inch
MOQ	1
Weight (lb)	0.42
Part Number Cross Reference	35B17, 35B17, 35B17, 35B17, 35B17
Number of Strands	1
Number of Hubs	1
