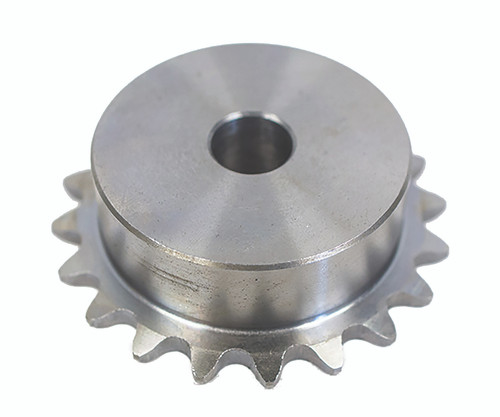

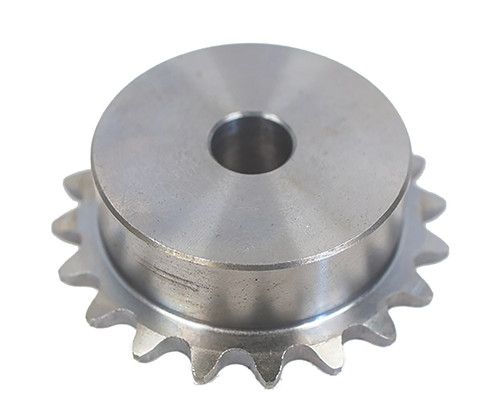

35B24, Roller Chain Sprocket

35B24, 35EM-B-24

35B24

35B24, Roller Chain Sprocket, Steel

Learn more about 35B24 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35B24
Teeth 24
Tooth Style 35
Type B
Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.873
Outside Diameter (in) 3.073
Face Width (in) 0.168
Overall Length (in) 0.875
Hub Diameter (in) 2.000
Min. Bore (in) 0.500
Unit System Inch
MOQ 1
Weight (lb) 0.88
Part Number Cross Reference 35B24, 35EM-B-24, 35B24, 35B24, 74395278, 35B24, 35B24

Related Products

Comparable to: 35B24, 35EM-B-24, 35B24, 35B24, 74395278, 35B24, 35B24

Documentation

Download Catalog
For custom parts click here
REACH Certification
RoHS Certification
