36-14MX68-3020, Timing Pulley

36-14MX68-3020 - Cast Iron Powerhouse® MX Pulleys

Product Details for 36-14MX68-3020

Comparable to: 36-14MX68-3020, 14MX-36S-68, B14MCS-36-

Click to Enlarge

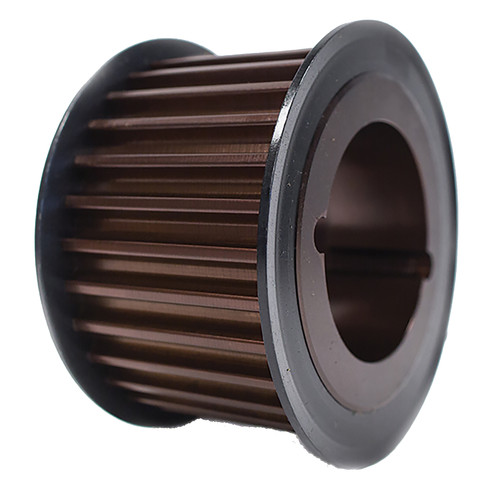

36-14MX68-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-14MX68-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 36-14MX68-3020
Teeth 36
Tooth Style GT2 14mm
For Belt Width (mm) 68.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 6.316
Outside Diameter (in) 6.206
Flange Diameter (in) 6.816
Face Width (in) 3.328
Overall Length (in) 3.328
Min. Bore (in) 0.875
Pulley Belt Width (in) 3.010
Unit System Inch
Bushing 3020
Max. Bore (in) 3.250
Weight (lb) 10.98
Part Number Cross Reference 36-14MX68-3020, 14MX-36S-68, B14MCS-36-
