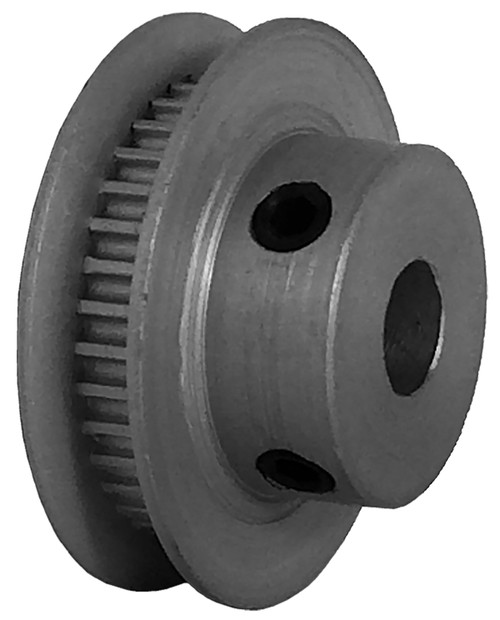

36-2P03-6FA3, Timing Pulley

36-2P03-6FA3

Click to Enlarge

36-2P03-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-2P03-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	36-2P03-6FA3
Teeth	36
Tooth Style	2P
For Belt Width (mm)	3.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.902
Outside Diameter (in)	0.882
Flange Diameter (in)	1.105
Face Width (in)	0.260
Overall Length (in)	0.516
Hub Diameter (in)	0.676
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.160
Unit System	Inch
P.D. (mm)	23.00
O.D. (mm)	22.40
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A51-036DF0308, A6A51-036DF0308, 36-2GT06-1A X 1/4, 36-2P03-6FA3, 36-2P03-6FA3
Set Screw Quantity	2
