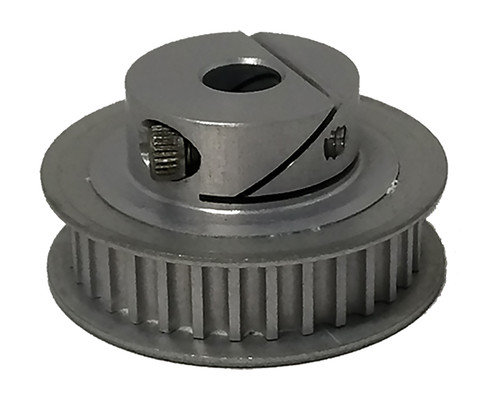

36-3M06-IA3, Timing Pulley

36-3M06-IA3 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

36-3M06-IA3

36-3M06-IA3 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

36-3M06-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-3M06-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-3M06-IA3
Teeth 36
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.353
Outside Diameter (in) 1.323
Flange Diameter (in) 1.473
Face Width (in) 0.407
Overall Length (in) 0.719
Hub Diameter (in) 0.750
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 34.00
O.D. (mm) 33.60
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference 36-3M06-IA3, 36-3M06-IA3
