36-5P15-1108, Timing Pulley

36-5P15-1108 - Steel Powerhouse® Pulleys

Product Details for 36-5P15-1108

Comparable to: P36-5MGT-15, 77091036

Click to Enlarge

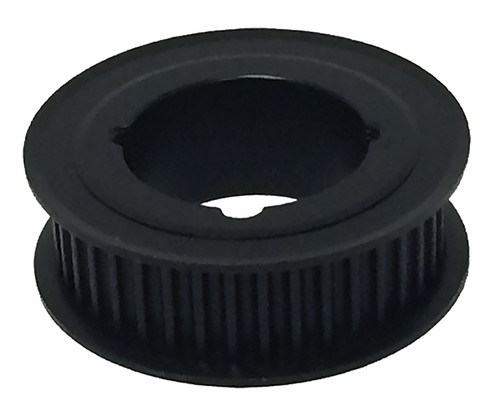

36-5P15-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 36-5P15-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-5P15-1108
Teeth 36
Tooth Style 5P
For Belt Width (mm) 15
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.256
Outside Diameter (in) 2.211
Flange Diameter (in) 2.375
Face Width (in) 0.880
Overall Length (in) 0.880
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.710
Unit System Inch
Bushing 1108
MOQ 1
Weight (lb) 0.51
Part Number Cross Reference P36-5MGT-15, 77091036
