36-8MX21-1610, Timing Pulley

36-8MX21-1610 - Cast Iron Powerhouse® MX Pulleys

Product Details for 36-8MX21-1610

Comparable to: 8MX-36S-21, 77182036, 8MX36S21-1610, TB 8M-36S-21, 2765196, B8MCS-36-21, 36G-8M-21-1610, 20296063, 481927, 8MPC36S21, GTR-36G-8M-21

Click to Enlarge

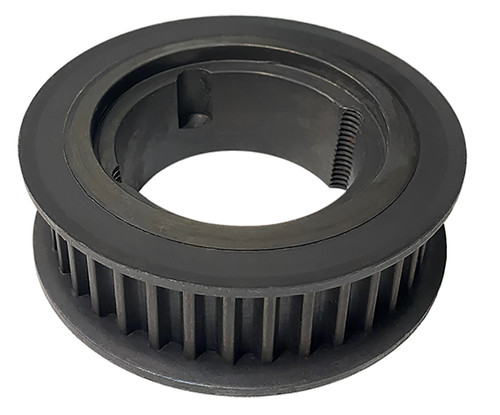

36-8MX21-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-8MX21-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-8MX21-1610
Teeth 36
Tooth Style 8MX
For Belt Width (mm) 21
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.609
Outside Diameter (in) 3.546
Flange Diameter (in) 3.938
Face Width (in) 1.203
Overall Length (in) 1.203
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.960
Unit System Inch
Bushing 1610
MOQ 1
Weight (lb) 1.74
Part Number Cross Reference 8MX-36S-21, 77182036, 8MX36S21-1610, TB 8M-36S-21, 2765196, B8MCS-36-21, 36G-8M-21-1610, 20296063, 481927, 8MPC36S21, GTR-36G-8M-21
