36-8P12-1210, Timing Pulley

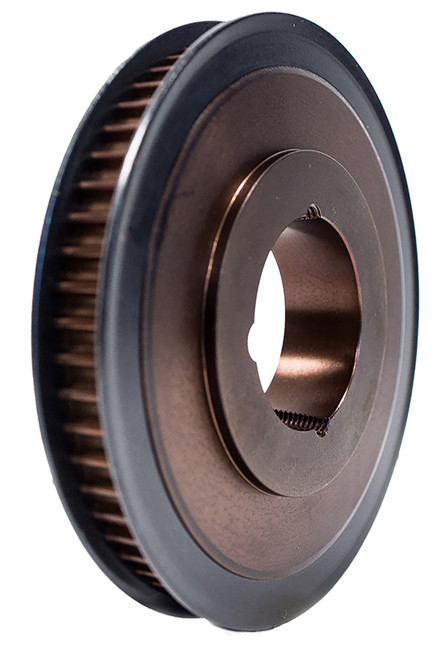

36-8P12-1210 - Cast Iron Powerhouse® Pulleys

36-8P12-1210

36-8P12-1210 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

36-8P12-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-8P12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-8P12-1210
Teeth 36
Tooth Style 8P
For Belt Width (mm) 12.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.609
Outside Diameter (in) 3.555
Flange Diameter (in) 3.938
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1210
P.D. (mm) 92.00
O.D. (mm) 90.30
MOQ 1
Weight (lb) 1.87
Part Number Cross Reference P36-8MGT-12, 36-8P12-1210, 36-8P12-1210
