36L050-6FA6 Imperial Pitch Pulleys

36L050-6FA6

Product Details for 36L050-6FA6

Comparable to: 36L050-6FA6,

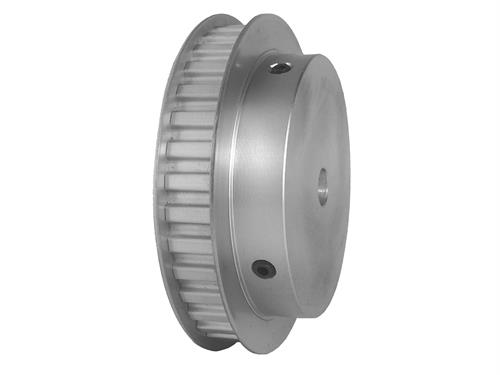

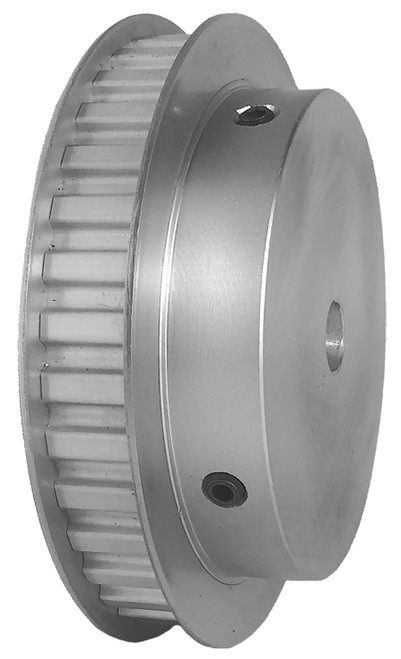

36L050-6FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

Specifications

Product Number 36L050-6FA6
Teeth 36
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.5
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.520
Face Width (in) 0.750
Overall Length (in) 1.375
Hub Diameter (in) 3.500
Set Screw 2 x 1/4-20 @ 90°
Min. Bore (in) 0.5
Unit System Inch
Weight (lb) 1.61
List Price (1-9 Qty.) (USD) 60
Discount Price (10-24 Qty.) (USD) 57
Discount Price (25-49 Qty.) (USD) 51
Discount Price (50-99 Qty.) (USD) 45
Discount Price (100-249 Qty.) (USD) 40.5
Part Number Cross Reference 36L050-6FA6,

Documentation

Download Catalog 2015_BBMAN_CATALOG_31.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36L050-6FA6_REACH_cert
RoHS Certification 36L050-6FA6_RoHS_cert
