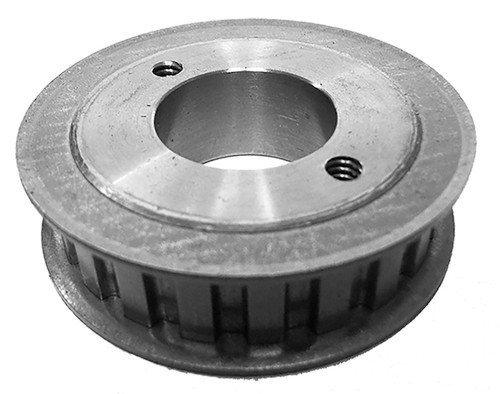

36LP050, Timing Pulley

36LP050 - Cast Iron Imperial Pitch Pulleys

36LP050

36LP050 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

36LP050, Timing Pulley, Cast Iron

Learn more about 36LP050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36LP050
Teeth 36
Tooth Style L
For Belt Width (in) 0.5000
Type 7
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.688
Face Width (in) 0.750
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 109.00
O.D. (mm) 108.40
MOQ 1
Weight (lb) 2.79
Part Number Cross Reference 36LP050, 36LP050, 36LP050
