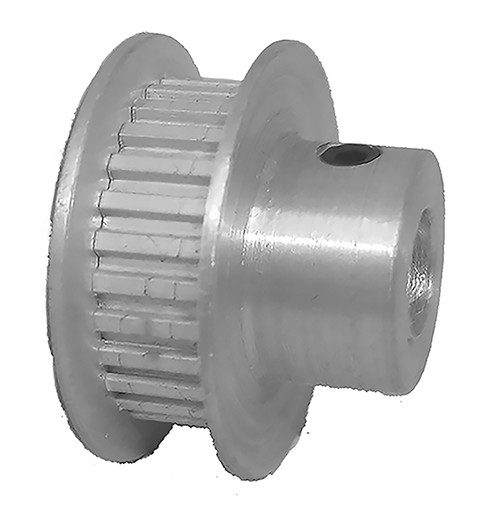

36LT187-6FA3, Timing Pulley

36LT187-6FA3 - Aluminum Imperial Pitch Pulleys

36LT187-6FA3

Click to Enlarge

36LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36LT187-6FA3
Teeth 36
Tooth Style LT
For Belt Width (in) 0.1875
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.935
Outside Diameter (in) 0.915
Flange Diameter (in) 1.105
Face Width (in) 0.324
Overall Length (in) 0.625
Hub Diameter (in) 0.676
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.220
Unit System Inch
P.D. (mm) 24.00
O.D. (mm) 23.20
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6A6-36DF01808, A6A6-36DF01808, 36LT-187 X 1/4-6F, PT036C08L02T, 36M187-1A X 1/4, 36LT187-6FA3, 36LT187-6FA3
Set Screw Quantity 2

Comparable to: A 6A6-36DF01808, A6A6-36DF01808, 36LT-187 X 1/4-6F, PT036C08L02T, 36M187-1A X 1/4, 36LT187-6FA3, 36LT187-6FA3

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
