36XL037-6A4, Timing Pulley

36XL037-6A4 - Aluminum Imperial Pitch Pulleys

36XL037-6A4

Click to Enlarge

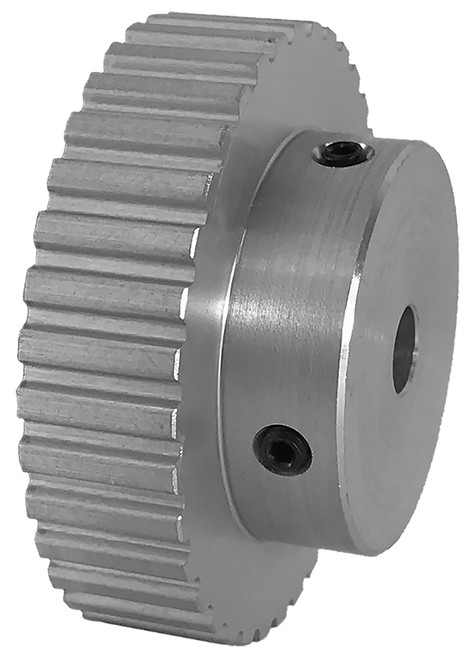

36XL037-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36XL037-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36XL037-6A4
Teeth 36
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.292
Outside Diameter (in) 2.272
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 58.00
O.D. (mm) 57.70
MOQ 1
Weight (lb) 0.31
Part Number Cross Reference A 6A3-36NF03710, A6A3-36NF03710, PB36XL037, 36XL037 X 5/16 6A, PT036D10L06N, 36XL037-2A 5/16, 36XLB037, 36AXL037-5/16, 20182060, 36XL037 X 5/16 MPB, 36AXL037MPB, P36XL037A, 36XL037-5/16, 6FFT7, P36XL037-PB, 36XL037-6A4, 113414, 36XL037-6A4
Set Screw Quantity 2

Comparable to: A 6A3-36NF03710, A6A3-36NF03710, PB36XL037, 36XL037 X 5/16 6A, PT036D10L06N, 36XL037-2A 5/16, 36XLB037, 36AXL037-5/16, 20182060, 36XL037 X 5/16 MPB, 36AXL037MPB, P36XL037A, 36XL037-5/16, 6FFT7, P36XL037-PB, 36XL037-6A4, 113414, 36XL037-6A4

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
