37-8P30-1610, Timing Pulley

37-8P30-1610

Click to Enlarge

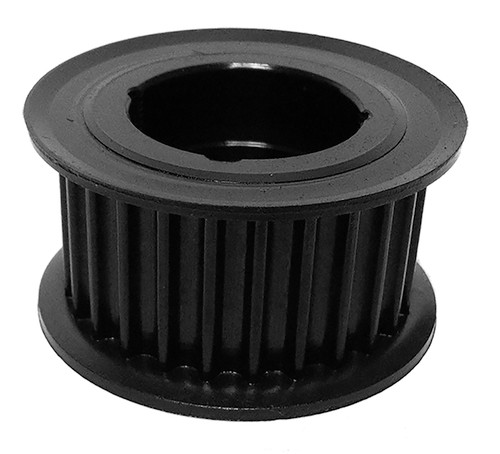

37-8P30-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 37-8P30-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	37-8P30-1610
Teeth	37
Tooth Style	8P
For Belt Width (mm)	30.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	3.709
Outside Diameter (in)	3.655
Flange Diameter (in)	4.050
Face Width (in)	1.500
Overall Length (in)	1.500
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.260
Unit System	Inch
Bushing	1610
P.D. (mm)	94.00
O.D. (mm)	92.80
MOQ	1
Weight (lb)	2.04
Part Number Cross Reference	P37-8MGT-30, B378M30TL, P37-8M30-1610, 37-8P30-1610, 37-8P30-1610
