38-14MX90-6FS16, Timing Pulley

38-14MX90-6FS16 - Steel Powerhouse® MX Pulleys

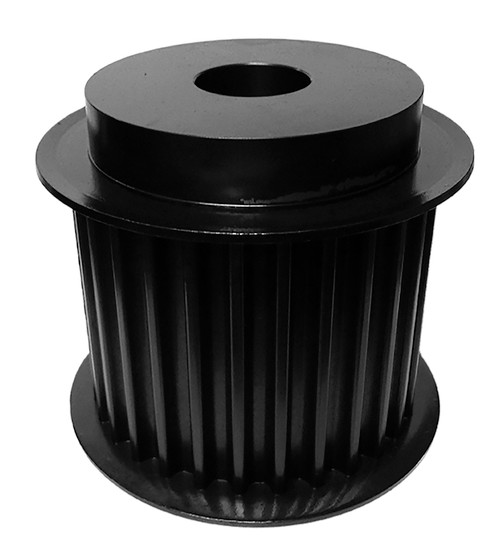

38-14MX90-6FS16

Click to Enlarge

38-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 38-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-14MX90-6FS16
Teeth 38
Tooth Style 14MX
For Belt Width (mm) 90.00
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.500
Bore Description 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.557
Flange Diameter (in) 7.167
Face Width (in) 4.203
Overall Length (in) 4.203
Hub Diameter (in) 5.630
Min. Bore (in) 1.5
Pulley Belt Width (in) 3.880
Unit System Inch
P.D. (mm) 169.00
O.D. (mm) 166.50
MOQ 1
Weight (lb) 41.00
Part Number Cross Reference PB14MX-38S-90, PB14MCS-38-90, 38G-14M-90-MPB, 20839820, PB14MX-38S-90 MPB, 14MPC38S90MPB, 38-14MX90-6FS16, 482138, 38-14MX90-6FS16

Comparable to: PB14MX-38S-90, PB14MCS-38-90, 38G-14M-90-MPB, 20839820, PB14MX-38S-90 MPB, 14MPC38S90MPB, 38-14MX90-6FS16, 482138, 38-14MX90-6FS16

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
