38-14P170-6FS16, Timing Pulley

38-14P170-6FS16 - Steel Powerhouse® Pulleys

Product Details for 38-14P170-6FS16

Comparable to: P38-14MGT-170-MPB, 77117038, 3552627, B3814M170B

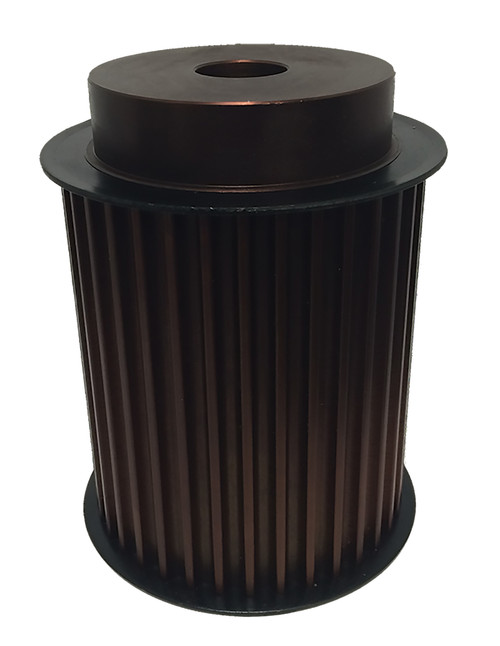

Click to Enlarge

38-14P170-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 38-14P170-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-14P170-6FS16
Teeth 38
Tooth Style 14P
For Belt Width (mm) 170
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.557
Flange Diameter (in) 7.167
Face Width (in) 7.420
Overall Length (in) 8.650
Hub Diameter (in) 5.630
Min. Bore (in) 1.500
Pulley Belt Width (in) 7.060
Unit System Inch
MOQ 1
Weight (lb) 51.67
Part Number Cross Reference P38-14MGT-170-MPB, 77117038, 3552627, B3814M170B
