38-3P09-6A3, Timing Pulley

38-3P09-6A3 - Aluminum Powerhouse® Pulleys

Product Details for 38-3P09-6A3

Comparable to: A 6A53-038NF0908, A6A53-038NF0908

Click to Enlarge

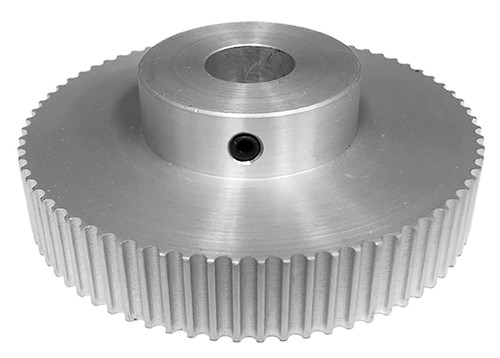

38-3P09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38-3P09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-3P09-6A3
Teeth 38
Tooth Style 3P
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.429
Outside Diameter (in) 1.399
Face Width (in) 0.527
Overall Length (in) 0.833
Hub Diameter (in) 1.075
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A53-038NF0908, A6A53-038NF0908
Set Screw Quantity 2
