38-3P09-6FA3, Timing Pulley

38-3P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 38-3P09-6FA3

Comparable to: A 6A53-038DF0908, A6A53-038DF0908, 3MR-38S-09, 78436015, TP3A3W9-38, 38-3GT09-1A X 1/4

Click to Enlarge

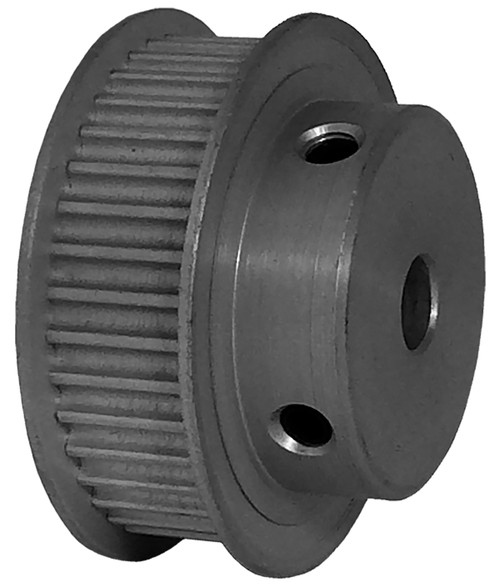

38-3P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38-3P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-3P09-6FA3
Teeth 38
Tooth Style 3P
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.429
Outside Diameter (in) 1.399
Flange Diameter (in) 1.549
Face Width (in) 0.527
Overall Length (in) 0.833
Hub Diameter (in) 1.075
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.400
Unit System Inch
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A53-038DF0908, A6A53-038DF0908, 3MR-38S-09, 78436015, TP3A3W9-38, 38-3GT09-1A X 1/4
Set Screw Quantity 2
