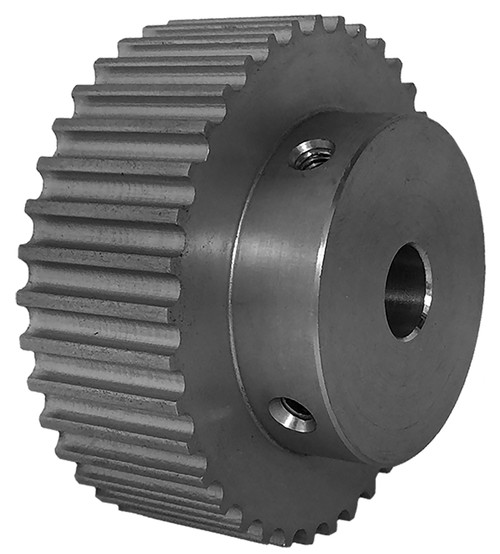

38-5M15M6A10, Timing Pulley

38-5M15M6A10 - Aluminum Powerhouse®HTD® Pulleys

38-5M15M6A10

38-5M15M6A10 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

38-5M15M6A10, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38-5M15M6A10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-5M15M6A10
Teeth 38
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 10 mm Finished Bore
Bore (mm) 10.00
Pitch Diameter (in) 2.381
Outside Diameter (in) 2.336
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 60.00
O.D. (mm) 59.30
Face Width (mm) 19.80
Overall Length (mm) 30.10
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.37
Part Number Cross Reference A 6A25M038NF1510, A6A25M038NF1510, 38-5M15M6A10, 38-5M15M6A10
Set Screw Quantity 2
