39-8MX12-1610, Timing Pulley

39-8MX12-1610 - Cast Iron Powerhouse® MX Pulleys

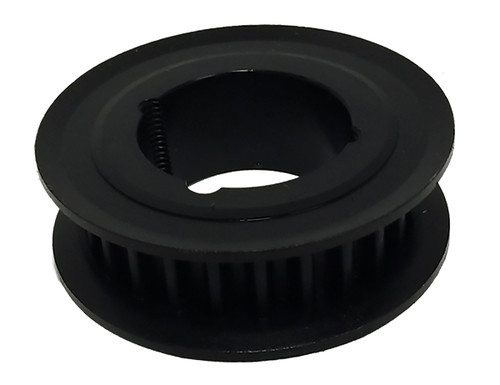

39-8MX12-1610

Click to Enlarge

39-8MX12-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 39-8MX12-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 39-8MX12-1610
Teeth 39
Tooth Style 8MX
For Belt Width (mm) 12.00
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 3.910
Outside Diameter (in) 3.847
Flange Diameter (in) 4.331
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1610
P.D. (mm) 99.00
O.D. (mm) 97.70
MOQ 1
Weight (lb) 2.18
Part Number Cross Reference 8MX-39S-12, B8MCS-39-12, 39G-8M-12-1610, 20839735, 8MX-39S-12-1610 HT500 SPKT, 8MPC39S12, 39-8MX12-1610, 481890, 39-8MX12-1610

Comparable to: 8MX-39S-12, B8MCS-39-12, 39G-8M-12-1610, 20839735, 8MX-39S-12-1610 HT500 SPKT, 8MPC39S12, 39-8MX12-1610, 481890, 39-8MX12-1610

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
