40-5P15-6FS6, Timing Pulley

40-5P15-6FS6 - Steel Powerhouse® Pulleys

Product Details for 40-5P15-6FS6

Comparable to: P40-5MGT-15-MPB, 77093040

Click to Enlarge

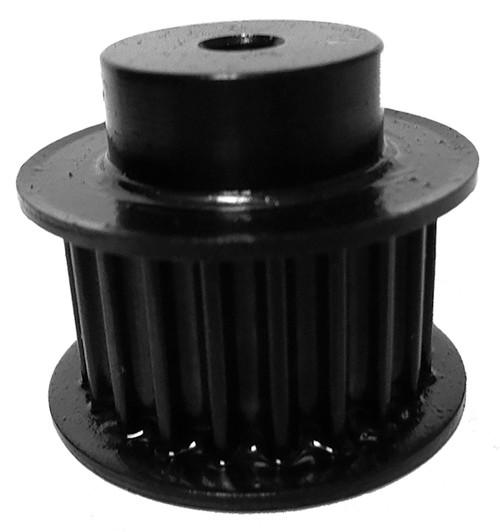

40-5P15-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 40-5P15-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-5P15-6FS6
Teeth 40
Tooth Style 5P
For Belt Width (mm) 15
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.506
Outside Diameter (in) 2.461
Flange Diameter (in) 2.750
Face Width (in) 0.890
Overall Length (in) 1.380
Hub Diameter (in) 2.090
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.710
Unit System Inch
MOQ 1
Weight (lb) 1.59
Part Number Cross Reference P40-5MGT-15-MPB, 77093040
