40-8MX62-6FS10, Timing Pulley

40-8MX62-6FS10

Click to Enlarge

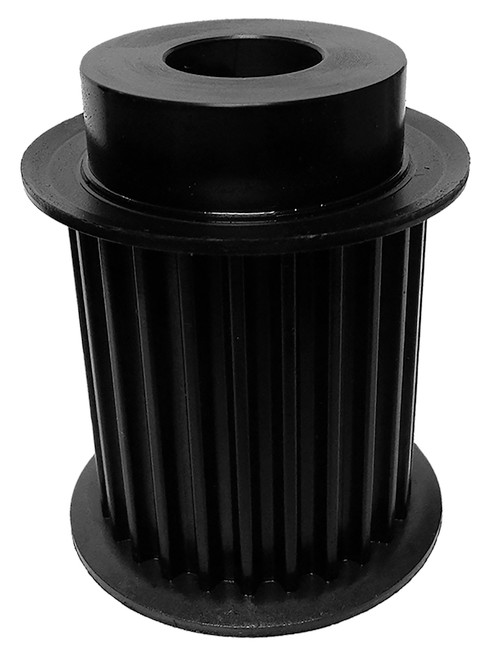

40-8MX62-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 40-8MX62-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	40-8MX62-6FS10
Teeth	40
Tooth Style	8MX
For Belt Width (mm)	62.00
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	4.010
Outside Diameter (in)	3.947
Flange Diameter (in)	4.331
Face Width (in)	2.906
Overall Length (in)	3.625
Hub Diameter (in)	3.516
Min. Bore (in)	1
Pulley Belt Width (in)	2.670
Unit System	Inch
P.D. (mm)	102.00
O.D. (mm)	100.30
MOQ	1
Weight (lb)	9.83
Part Number Cross Reference	PB8MX-40S-62, PB8MCS-40-62, 40G-8M-62-MPB, 20839740, PB8MX-40S-62 MPB, 8MPC40S62MPB, 40-8MX62-6FS10, 481993, 40-8MX62-6FS10
