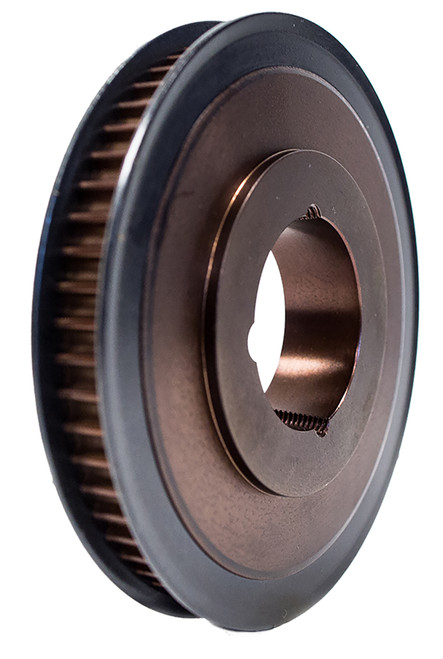

40-8P12-1210, Timing Pulley

40-8P12-1210 - Cast Iron Powerhouse® Pulleys

40-8P12-1210

40-8P12-1210 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

40-8P12-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 40-8P12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-8P12-1210
Teeth 40
Tooth Style 8P
For Belt Width (mm) 12.00
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 4.010
Outside Diameter (in) 3.956
Flange Diameter (in) 4.331
Face Width (in) 0.750
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 1210
P.D. (mm) 102.00
O.D. (mm) 100.50
MOQ 1
Weight (lb) 2.44
Part Number Cross Reference P40-8MGT-12, 40-8P12-1210, 40-8P12-1210
