40L050-6FA6, Timing Pulley

40L050-6FA6 - Aluminum Imperial Pitch Pulleys

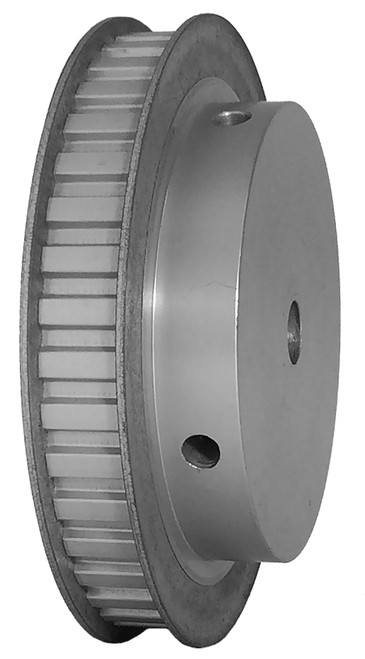

40L050-6FA6

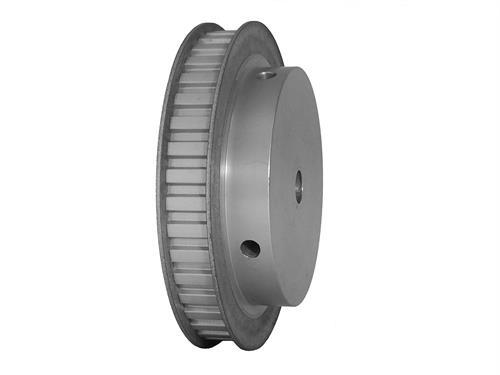

Click to Enlarge

40L050-6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 40L050-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40L050-6FA6
Teeth 40
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Flange Diameter (in) 5.000
Face Width (in) 0.750
Overall Length (in) 1.375
Hub Diameter (in) 3.625
Min. Bore (in) 0.500
Unit System Inch
P.D. (mm) 121.00
O.D. (mm) 120.50
MOQ 1
Weight (lb) 2.02
Part Number Cross Reference A 6A4-40DF05016, A6A4-40DF05016, 40L050-6FA6
Set Screw Quantity 2
