40L100-6FS7 Imperial Pitch Pulleys

40L100-6FS7, 40LB100, 114452

Product Details for 40L100-6FS7

Comparable to: 40L100-6FS7, 40LB100, 114452

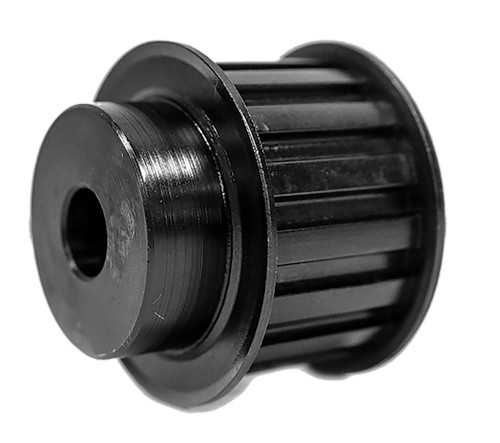

40L100-6FS7, Timing Pulley, Powerhouse Timing, 5/8 Inch Bore, Cast Iron

Specifications

Product Number 40L100-6FS7
Teeth 40
Tooth Style L
For Belt Width (in) 1.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.625
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Flange Diameter (in) 5.000
Face Width (in) 1.250
Overall Length (in) 1.750
Hub Diameter (in) 3.625
Min. Bore (in) 0.625
Pulley Belt Width (in) 1.070
Unit System Inch
Weight (lb) 7.38
List Price (1-9 Qty.) (USD) 70.18
Discount Price (10-24 Qty.) (USD) 63.16
Discount Price (25-49 Qty.) (USD) 55.27
Part Number Cross Reference 40L100-6FS7, 40LB100, 114452
