40LT187-6A3 Imperial Pitch Pulleys

40LT187-6A3, A 6A6-40NF01806, A6A6-40NF01806

Product Details for 40LT187-6A3

Comparable to: 40LT187-6A3, A 6A6-40NF01806, A6A6-40NF01806

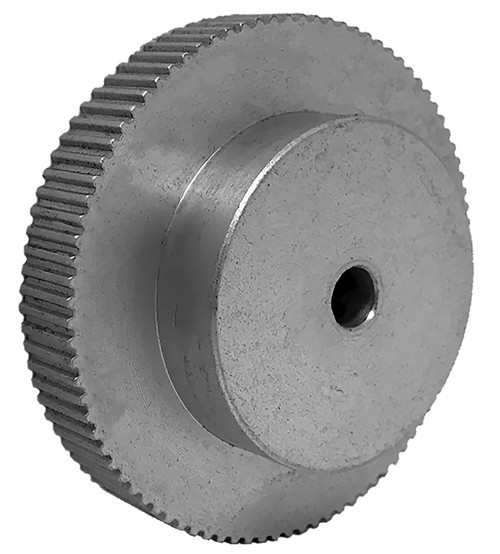

40LT187-6A3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 40LT187-6A3
Teeth 40
Tooth Style LT
For Belt Width (in) 0.188
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.040
Outside Diameter (in) 1.026
Face Width (in) 0.750
Overall Length (in) 0.666
Hub Diameter (in) 0.666
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Unit System Inch
Max. Bore (in) 0.416
Weight (lb) 0.05
Part Number Cross Reference 40LT187-6A3, A 6A6-40NF01806, A6A6-40NF01806

Documentation

Download Catalog 2015_BBMAN_CATALOG_13.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40LT187-6A3_REACH_cert
RoHS Certification 40LT187-6A3_RoHS_cert
