40LT312-6A3, Timing Pulley

40LT312-6A3 - Aluminum Imperial Pitch Pulleys

Product Details for 40LT312-6A3

Comparable to: A 6A6-40NF03108, A6A6-40NF03108, 40M312-2A X 1/4

Click to Enlarge

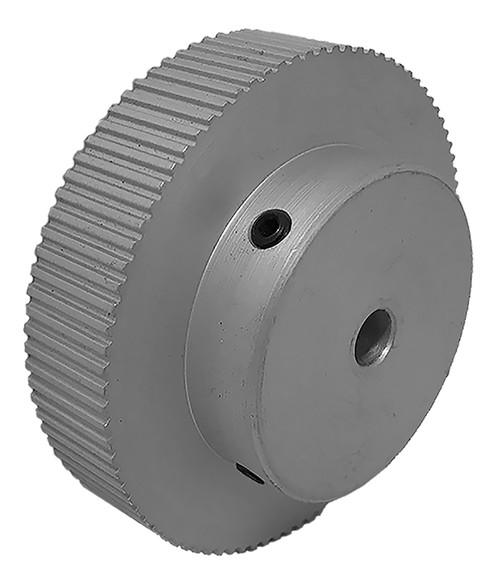

40LT312-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 40LT312-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40LT312-6A3
Teeth 40
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.040
Outside Diameter (in) 1.026
Face Width (in) 0.875
Overall Length (in) 0.666
Hub Diameter (in) 0.666
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.06
Part Number Cross Reference A 6A6-40NF03108, A6A6-40NF03108, 40M312-2A X 1/4
Set Screw Quantity 2
