40T10-PS160A Bar Stock

40T10-PS160A, A6A38M040T16, A 6A38M040T16, 40T10-PS-160

Product Details for 40T10-PS160A

Comparable to: 40T10-PS160A, A 6A38M040T16, A6A38M040T16, 40T10-PS-1

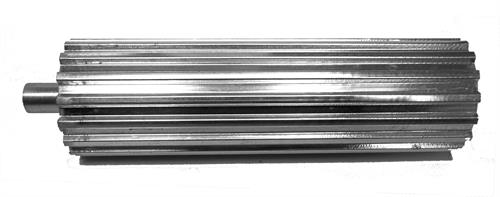

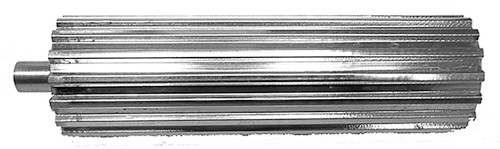

40T10-PS160A, Timing Pulley Stock, Powerhouse Timing, 160 mm Usable Length, Aluminum

Specifications

Product Number 40T10-PS160A
Teeth 40
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 5.018
Outside Diameter (in) 4.939
Overall Length (in) 7.300
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 127.50
O.D. (mm) 125.50
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
Weight (lb) 11.70
Part Number Cross Reference 40T10-PS160A, A 6A38M040T16, A6A38M040T16, 40T10-PS-1
