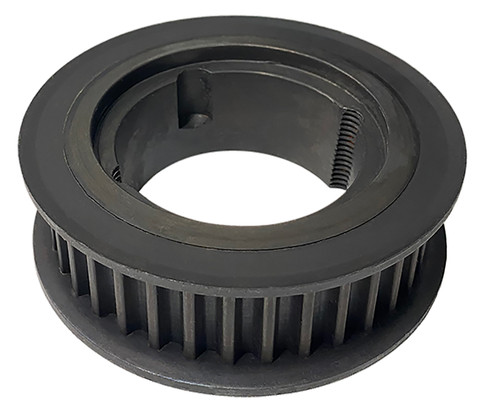

41-8MX21-2012, Timing Pulley

41-8MX21-2012 - Cast Iron Powerhouse® MX Pulleys

Product Details for 41-8MX21-2012

Comparable to: 41-8MX21-2012, 8MX-41S-21, B8MCS-41-21, 41G-8M-21-TL2012, 208397

41-8MX21-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 41-8MX21-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 41-8MX21-2012
Teeth 41
Tooth Style GT2 8mm
For Belt Width (mm) 21.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.110
Outside Diameter (in) 4.047
Flange Diameter (in) 4.331
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.960
Unit System Inch
Bushing 2012
Max. Bore (in) 2.125
Weight (lb) 2.17
Part Number Cross Reference 41-8MX21-2012, 8MX-41S-21, B8MCS-41-21, 41G-8M-21-TL2012, 208397
