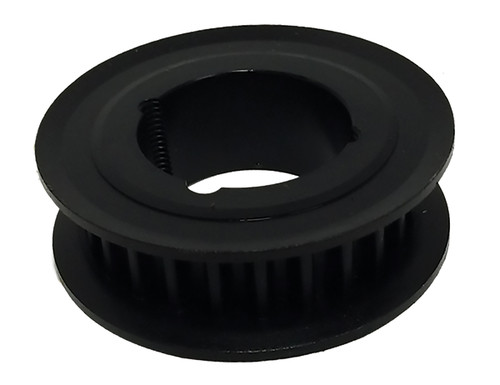

42-8MX12-2012, Timing Pulley

42-8MX12-2012

Click to Enlarge

42-8MX12-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 42-8MX12-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	42-8MX12-2012
Teeth	42
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	4.211
Outside Diameter (in)	4.148
Flange Diameter (in)	4.687
Face Width (in)	0.850
Overall Length (in)	1.250
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.610
Unit System	Inch
Bushing	2012
P.D. (mm)	107.00
O.D. (mm)	105.40
MOQ	1
Weight (lb)	2.35
Part Number Cross Reference	8MX-42S-12, B8MCS-42-12, 42G-8M-12-2012, 20839744, 8MX-42S-12-2012 HT500 SPKT, 8MPC42S12, 42-8MX12-2012, 481893, 42-8MX12-2012
