43-14MX125-6FS16, Timing Pulley

43-14MX125-6FS16

Click to Enlarge

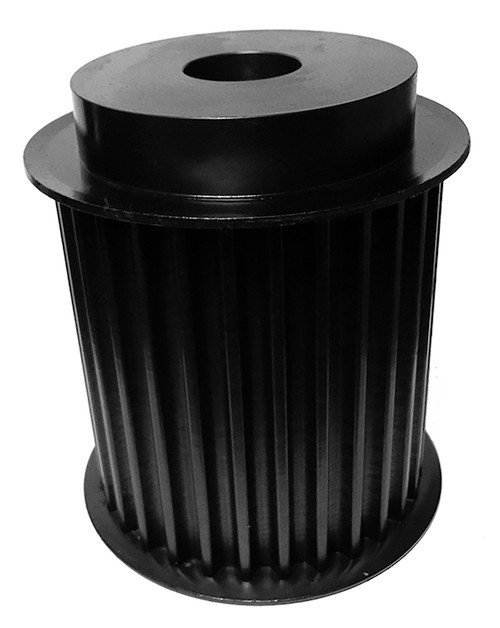

43-14MX125-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 43-14MX125-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	43-14MX125-6FS16
Teeth	43
Tooth Style	14MX
For Belt Width (mm)	125.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.500
Bore Description	1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	7.544
Outside Diameter (in)	7.434
Flange Diameter (in)	8.395
Face Width (in)	5.609
Overall Length (in)	6.813
Hub Diameter (in)	6.510
Min. Bore (in)	1.5
Pulley Belt Width (in)	5.290
Unit System	Inch
P.D. (mm)	192.00
O.D. (mm)	188.80
MOQ	1
Weight (lb)	68.00
Part Number Cross Reference	PB14MX-43S-125, PB14MCS-43-125, 43G-14M-125-MPB, 20839834, PB14MX-43S-125 MPB, 14MPC43S125MPB, 43-14MX125-6FS16, 482179, 43-14MX125-6FS16
