43V3350E, V-Belt Pulley

43V3350E, 3V33.5-4-E, 20180580, 3V3354, 4-3V3.35, 4/3V3350E

43V3350E

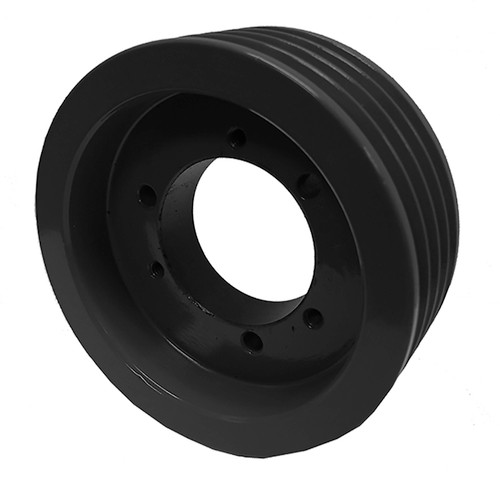

43V3350E, V-Belt Pulley, Cast Iron

Learn more about 43V3350E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 43V3350E
Type C-3
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 33.450
Outside Diameter (in) 33.500
Face Width (in) 1.906
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 84.00
Part Number Cross Reference QD4/3V33.50, 43V3350E, 3V33.5-4-E, 20180580, 4-3V33.50-E SHEAVE, 3V3354, 4-3V33.50, 43V3350E, 455187, 43V3350E
Grooves 4

Related Products

Comparable to: QD4/3V33.50, 43V3350E, 3V33.5-4-E, 20180580, 4-3V33.50-E SHEAVE, 3V3354, 4-3V33.50, 43V3350E, 455187, 43V3350E
