43V650SK, V-Belt Pulley

43V650SK, 3V6.5-4-SK, 20180636, 3V654, 4-3V6.5, 4/3V650SK

Product Details for 43V650SK

Comparable to: QD4/3V6.50, 78724065, 4 3V 650 SK, 4-3V650.SK, 43V650SK, 3V6.5-4-SK, 20180636, 4/3V6.5–SK, 3V654, 43V6.5, 4/3V650SK, 55520407, 4-3V6.5, 4-3V65, 455179

Click to Enlarge

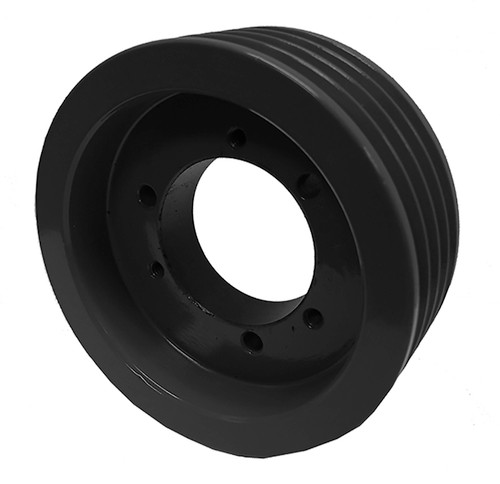

43V650SK, V-Belt Pulley, Cast Iron

Learn more about 43V650SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 43V650SK
Type D1
Material Cast Iron
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 6.450
Outside Diameter (in) 6.500
Face Width (in) 1.906
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 10.00
Part Number Cross Reference QD4/3V6.50, 78724065, 4 3V 650 SK, 4-3V650.SK, 43V650SK, 3V6.5-4-SK, 20180636, 4/3V6.5–SK, 3V654, 43V6.5, 4/3V650SK, 55520407, 4-3V6.5, 4-3V65, 455179
Grooves 4
