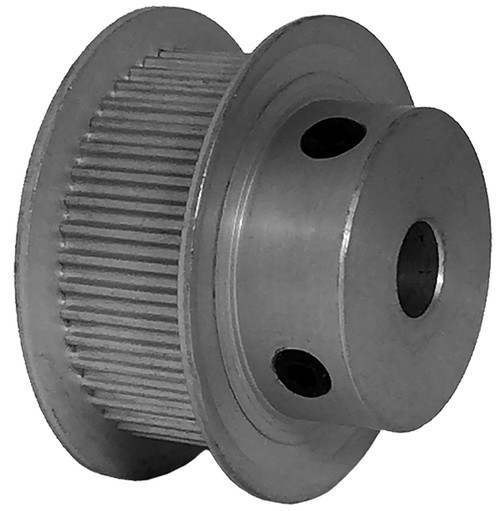

44-2P09-6FA3, Timing Pulley

44-2P09-6FA3 - Aluminum Powerhouse® Pulleys

44-2P09-6FA3

Click to Enlarge

44-2P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 44-2P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-2P09-6FA3
Teeth 44
Tooth Style 2P
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.103
Outside Diameter (in) 1.083
Flange Diameter (in) 1.315
Face Width (in) 0.530
Overall Length (in) 0.843
Hub Diameter (in) 0.858
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.410
Unit System Inch
P.D. (mm) 28.00
O.D. (mm) 27.50
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference 2MR-44S-09, 44-2P09-6FA3
Set Screw Quantity 2
