44-3M09-6FA3, Timing Pulley

44-3M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

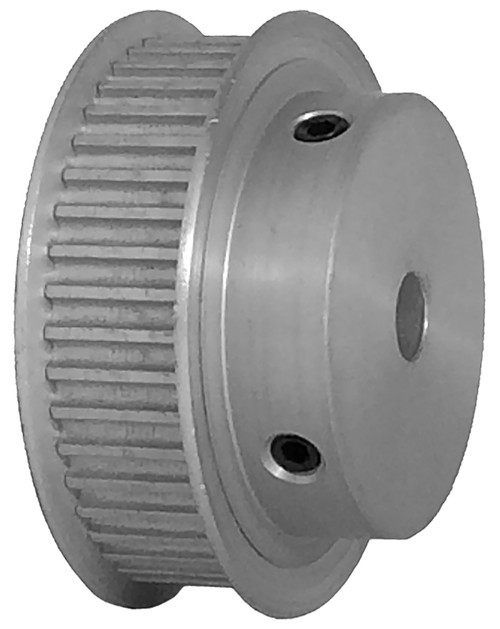

44-3M09-6FA3

Click to Enlarge

44-3M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 44-3M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-3M09-6FA3
Teeth 44
Tooth Style HTD3mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.654
Outside Diameter (in) 1.624
Flange Diameter (in) 1.775
Face Width (in) 0.527
Overall Length (in) 0.833
Hub Diameter (in) 1.300
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.400
Unit System Inch
P.D. (mm) 42.00
O.D. (mm) 41.30
MOQ 1
Weight (lb) 0.15
Part Number Cross Reference A 6A23-044DF0908, A6A23-044DF0908, P44-3M-09AL, 44M3-L09M-6F, PT044F08L09T, 44-3M-09 X 1/4, 44-3M09-6FA3, 44-3M09-6FA3
Set Screw Quantity 2

Comparable to: A 6A23-044DF0908, A6A23-044DF0908, P44-3M-09AL, 44M3-L09M-6F, PT044F08L09T, 44-3M-09 X 1/4, 44-3M09-6FA3, 44-3M09-6FA3
