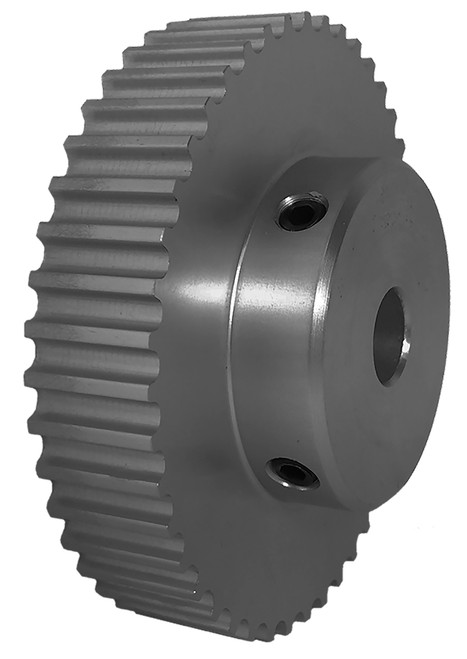

44-5M09M6A10, Timing Pulley

44-5M09M6A10 - Aluminum Powerhouse®HTD® Pulleys

44-5M09M6A10

44-5M09M6A10 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

44-5M09M6A10, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 44-5M09M6A10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-5M09M6A10
Teeth 44
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 10 mm Finished Bore
Bore (mm) 10.00
Pitch Diameter (in) 2.757
Outside Diameter (in) 2.712
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 70.00
O.D. (mm) 68.90
Face Width (mm) 13.90
Overall Length (mm) 23.80
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.37
Part Number Cross Reference A 6A25M044NF0910, A6A25M044NF0910, 44-5M09M6A10, 44-5M09M6A10
Set Screw Quantity 2
