44-5P15-1108, Timing Pulley

44-5P15-1108 - Steel Powerhouse® Pulleys

Product Details for 44-5P15-1108

Comparable to: P44-5MGT-15, 77091044

Click to Enlarge

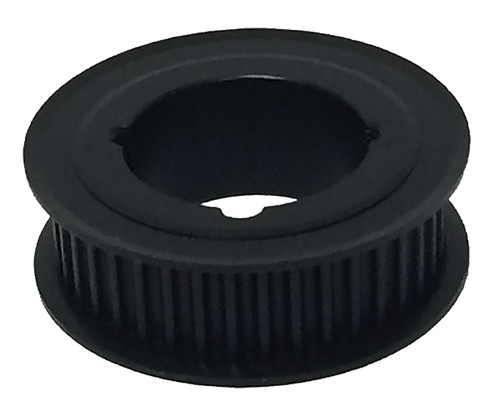

44-5P15-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 44-5P15-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-5P15-1108
Teeth 44
Tooth Style 5P
For Belt Width (mm) 15
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.757
Outside Diameter (in) 2.712
Flange Diameter (in) 3.094
Face Width (in) 0.880
Overall Length (in) 0.880
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.710
Unit System Inch
Bushing 1108
MOQ 1
Weight (lb) 1.01
Part Number Cross Reference P44-5MGT-15, 77091044
