44MP012-6FA3, Timing Pulley

44MP012-6FA3, A6N16-044DF1208, A 6N16-044DF1208, PB44MXL012, 78260290, 44MP-012 1/4 6F, PT044A08L02T, TP7A4W2-44

Product Details for 44MP012-6FA3

Comparable to: 44MP012-6FA3, A 6N16-044DF1208, A6N16-044DF1208, PB44MXL012, 78260290, 44MP-012 1/4 6F, PT044A08L02T, TP7A4W2-

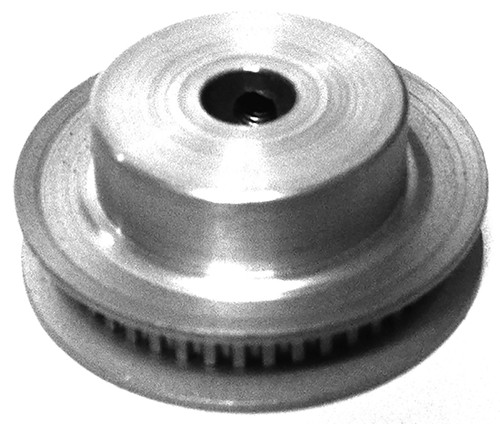

44MP012-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Learn more about 44MP012-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44MP012-6FA3
Teeth 44
Tooth Style MXL
For Belt Width (in) 0.125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.120
Outside Diameter (in) 1.100
Flange Diameter (in) 1.315
Face Width (in) 0.276
Overall Length (in) 0.531
Hub Diameter (in) 0.858
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.160
Unit System Inch
Max. Bore (in) 0.608
Weight (lb) 0.06
Part Number Cross Reference 44MP012-6FA3, A 6N16-044DF1208, A6N16-044DF1208, PB44MXL012, 78260290, 44MP-012 1/4 6F, PT044A08L02T, TP7A4W2-
