45-2P06-6FA3, Timing Pulley

45-2P06-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 45-2P06-6FA3

Comparable to: A 6A51-045DF0608, A6A51-045DF0608, 2MR-45S-06, 78426019, TP2A3W6-45

Click to Enlarge

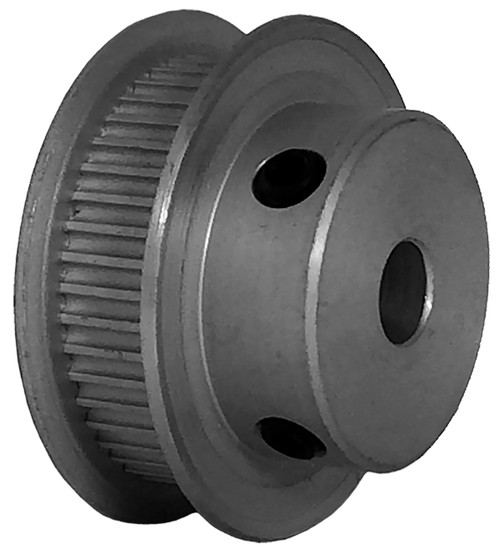

45-2P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45-2P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45-2P06-6FA3
Teeth 45
Tooth Style 2P
For Belt Width (mm) 6
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.108
Flange Diameter (in) 1.340
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.900
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A51-045DF0608, A6A51-045DF0608, 2MR-45S-06, 78426019, TP2A3W6-45
Set Screw Quantity 2
