48-14MX20-3020 Powerhouse™ Mx Pulleys

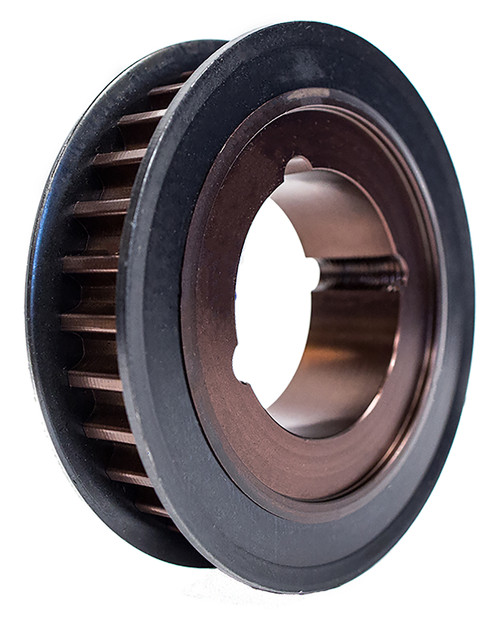

48-14MX20-3020, Timing Pulley, Powerhouse MX, 3020 Bushing, Cast Iron
Specifications
| Product Number | 48-14MX20-3020 |
| Teeth | 48 |
| Tooth Style | GT2 14mm |
| For Belt Width (mm) | 20.000 |
| Type | B1F |
| Material | Cast Iron |
| Finish | Black Oxide |
| Flange Material | Steel |
| Bore Type | TL |
| Bore (in) | 3020 |
| Pitch Diameter (in) | 8.421 |
| Outside Diameter (in) | 8.311 |
| Flange Diameter (in) | 8.941 |
| Face Width (in) | 1.359 |
| Overall Length (in) | 2.000 |
| Pulley Belt Width (in) | 1.040 |
| Unit System | Inch |
| Bushing | 3020 |
| Weight (lb) | 16.50 |
| Part Number Cross Reference | 48-14MX20-3020, 14MX-48S-20, B14MCS-48- |
Documentation
| Download Catalog | 2015_BBMAN_CATALOG_167.pdf |
| General Characteristics | gen_char.html |
| Pulley Tolerances | pulley_tol.html |
| Part Number Nomenclature Chart | part_number_explain.pdf |
| Keyway Standards and Tolerances | keyway_specs.pdf |
| Drive Alignment Guide | proper alignment.pdf |
| For custom parts click here | custom.html |
| REACH Certification | 48-14MX20-3020_REACH_cert |
| RoHS Certification | 48-14MX20-3020_RoHS_cert |
