48-8MX12-2012, Timing Pulley

48-8MX12-2012 - Cast Iron Powerhouse® MX Pulleys

Product Details for 48-8MX12-2012

Comparable to: 8MX-48S-12, 77181048, 8MX48S12-2012, TB 8M-48S-12, 2764843, B8MCS-48-12, 48G-8M-12-2012, 20296078, 481895, 8MPC48S12, GTR-48G-8M-12, 48G8M12

Click to Enlarge

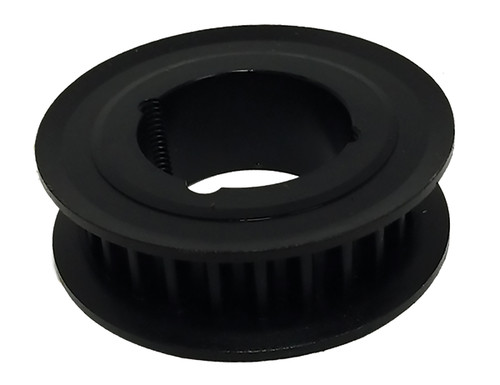

48-8MX12-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 48-8MX12-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48-8MX12-2012
Teeth 48
Tooth Style 8MX
For Belt Width (mm) 12
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 4.812
Outside Diameter (in) 4.749
Flange Diameter (in) 5.157
Face Width (in) 0.850
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 2012
MOQ 1
Weight (lb) 2.60
Part Number Cross Reference 8MX-48S-12, 77181048, 8MX48S12-2012, TB 8M-48S-12, 2764843, B8MCS-48-12, 48G-8M-12-2012, 20296078, 481895, 8MPC48S12, GTR-48G-8M-12, 48G8M12
