48XL037-6A5, Timing Pulley

48XL037-6A5

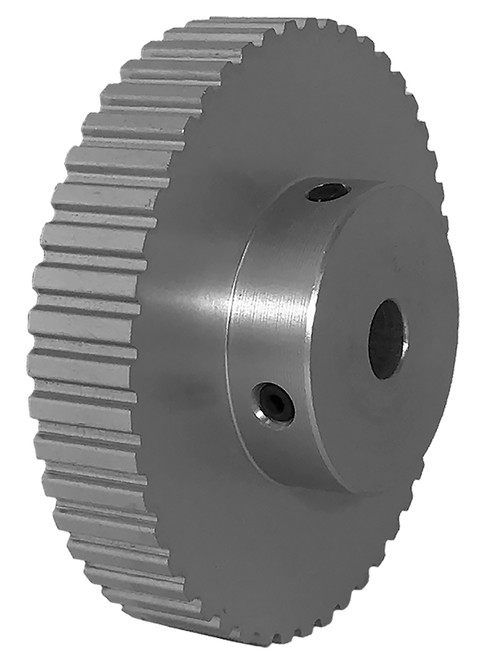

Click to Enlarge

48XL037-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48XL037-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	48XL037-6A5
Teeth	48
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	3.056
Outside Diameter (in)	3.036
Face Width (in)	0.563
Overall Length (in)	1.000
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	78.00
O.D. (mm)	77.10
MOQ	1
Weight (lb)	0.50
Part Number Cross Reference	A A-NF, A6A3-48NF03712, PB48XL037, 48XL037 X 3/8 6A, 48XL037-3A 3/8, 48XL037-6A5, 48XL037-6A5
Set Screw Quantity	2
