4B250E, V-Belt Pulley

4B250E

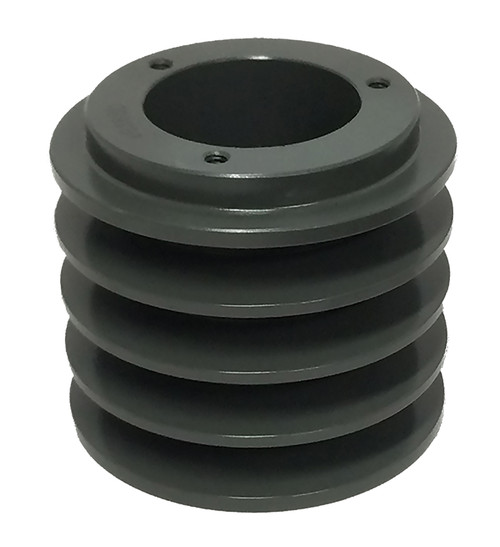

4B250E, V-Belt Pulley, Cast Iron

Learn more about 4B250E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	4B250E
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for E Bushing
Outside Diameter (in)	25.350
Face Width (in)	3.250
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
MOQ	1
Pitch Dia. "A"	24.600
Pitch Dia. "B"	25.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	73.00
Part Number Cross Reference	QD4A24.8/B25.0, 4B250.E, 4B250E, 25.0-4B-E, 20179172, 4B250-E SHEAVE, 2504B, 4B25.0, 25.0-4B-E, 4/B2500E, 4B250, 4BQ250, 4B250E, 4B250E, 455672, 4B250E
Grooves	4
