4B38SD, V-Belt Pulley

4B38SD, 3.8-4B-SD, 20179208, 384B, 4B38

4B38SD

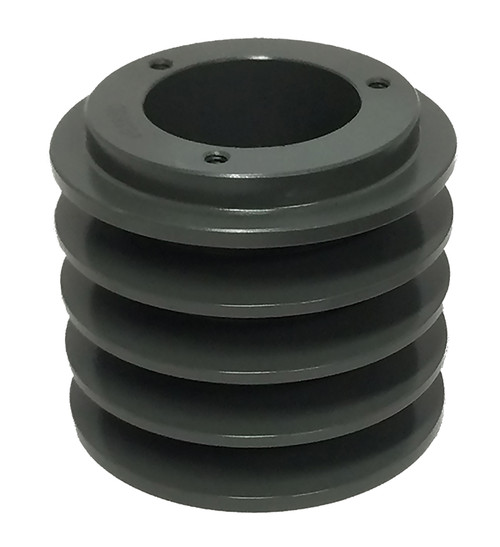

4B38SD, V-Belt Pulley, Cast Iron

Learn more about 4B38SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 4B38SD
Type E-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SD Bushing
Outside Diameter (in) 4.150
Face Width (in) 3.250
Min. Bore (in) 0.5
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 3.400
Pitch Dia. "B" 3.800
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 6.20
Part Number Cross Reference QD4A3.6/B3.8, 4B38.SD, 4B38SD, 3.8-4B-SD, 20179208, 4B38-SD SHEAVE, 384B, 4B3.8, 3.8-4B-SD, 4/B380SD, 4B38, 4BQ38, 4B38SD, 4B38SD, 455644, 4B38SD
Grooves 4

Related Products

Comparable to: QD4A3.6/B3.8, 4B38.SD, 4B38SD, 3.8-4B-SD, 20179208, 4B38-SD SHEAVE, 384B, 4B3.8, 3.8-4B-SD, 4/B380SD, 4B38, 4BQ38, 4B38SD, 4B38SD, 455644, 4B38SD
